| Brand Name : | Guangzhou beiwen electric appliance technology co. LTD |
| Model Number : | BWD-16 |
| Certification : | CQC，TUV,CB,ROHS.US |
| Price : | negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 30000+30000+7 |
| Delivery Time : | 5-8word dasy |

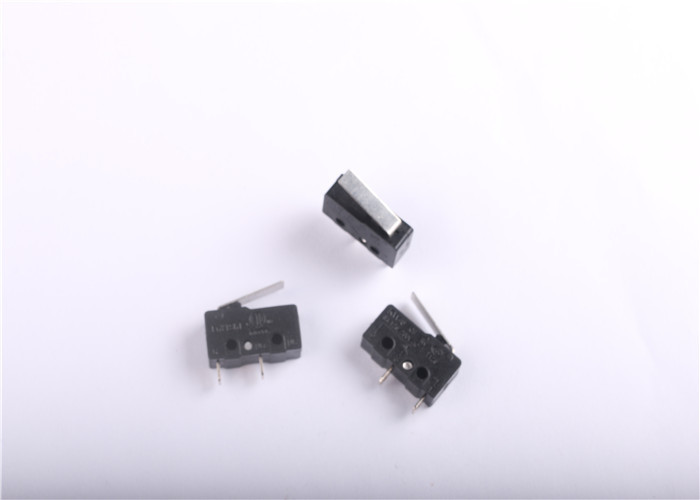

Micro Electric switch/push button switch 1press-button 250v t125 r11
100% brand new and high quality
15A 125/250VAC 16(8)A 250VAC 16(4)A 250VAC
Fixture style: snap-in
Pin Length: 9.7mm
Pin number: 3
Colour: black
Specification:
Rated Load: 15A 125/250VAC 16(8)A 250VAC 16(4)A 250VAC
Contact Resistance: ≤ 50MΩ
Insulation Resistance: ≥ 100MΩ
Dielectric intensity: ≥ 750VAC/1Min
Life: ≥10000 Cycles
Quality:
Smart car, compact design, suitable for small spaces
High
Parameters:
| Operating Speed | 0.1mm-1m/s( Related with actuator forms) | ||
| Operating Frequency | Mechanical 60 cycles/min; Electrical 15 cycles/min. | ||
| Insulation Resistance | ≥100MΩ (500VDC) | ||
| Contact Resistance | ≤100MΩ (Initial value) | ||
| Test Voltage | Between each terminals of the same polarity | AC1000V,50/60HZ, 1min. | |
| Between current-carrying metal part and ground.and between each terminal and non-current-carring metal parts | AC1500V, 50/60HZ, 1min. | ||
| Vibration Resistance | 10-55HZ, 1.5mm Double amplitude | ||
| Shock Resistance | Destruction: OF>0.5N:1000m/s2 (approx.100G)max. | ||
| Destruction:OF>0.5N:200m/s2 (approx.20G)max. | |||
| Serivece Life | Mechanical ≥ 10,000,000cycles or 1,000,000cycles | ||
| Electrical ≥ 50,000cycles or 100,000cycles | |||
| Weight | Approx. 6.2g(No lever). | ||
| Trade Terms | Price negotiation Payment: negotiation,50% deposit before production, balance 50% before shipment | ||
| Certificates | ISO9001&TS16949 ENEC CQC RoHS & Reach | ||
|
|
